Hematology

BC 6000 - Autoamted Hematology Analyser

At Mindray, we seek to understand the needs of every customer, and deliver tailor-made solutions. In today’s laboratories, lab managers are looking for an analyzer with greater clinical values, such as higher flagging efficiency to reduce the ratio of microscopic examination, NRBC/body fluid results generated in a small-footprint system, among others, all within limited budget. Mindray BC-6000 fulfills all these clinical requirements and exceeds your expectations!

Features

With the newly designed opticals and reagent systems, the SF Cube technology can help doctors to better differentiate the clusters of cells, which is the key to revealing more abnormal cells.

In WNB scattergram, BC-6000 provides NRBC, Basophils and WBC-N* results. It means that the actual number of NRBCs can be measured in routine CBC, if they are present in the sample. Basophils are counted in this counting channel with NRBC results. Basophil and NRBC results are generated on BC-6000 without extra reagent or cost.

Should the sample results trigger the criteria, the autoloader of BC-6000 can return the sample racks for an automatic rerun or reflex check.

BC-6000 requires less sample volume as well as reagent consumption. For a CBC+DIFF test with NRBC result, BC-6000 only requires 80μL of whole blood and 35 μL of capillary blood.

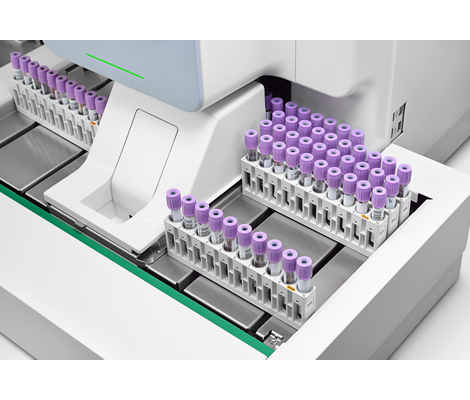

BC-6000 can load up to 50 samples at a time and offers a throughput of up to 110 tests per hour.

BC 6800 Auto Hematology Analyzer

SF cube cell analysis technology for WBC.
Reticulocyte & NRBC flag detection.
Provides dedicated flag called “ Infected RBC” ( Malaria screening).
PLT- Optical + fluorescence measurement.
Capable of processing up to 200 samples per hour, making it suitable for laboratories with a high workload and the need for rapid turnaround times.
Designed to optimize reagent usage, reducing operational costs while maintaining high-quality performance.
Despite its advanced features, the BC-6800 has a compact design suitable for laboratories with space constraints while offering robust performance capabilities.
Offers accurate reticulocyte counting and analysis, which is essential for assessing bone marrow function and diagnosing various hematological disorders.

Principles:

SF cube cell analysis technology for WBC 5-part diff, NRBC, RET and PLT-O.

Focusing flow-DC method for RBC and PLT.

Cyanide free hemoglobin measurement.

Sample Volume:

Predilute mode (capillary blood), open vial 40ul.

Manual mode (whole blood), open vial 150ul.

Autoloader mode (whole blood), closed vial 200ul.

Parameters:

33 reportable parameters: WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#,

Eos#, Bas#; RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, RET%, RET#, IRF, LFR,

MFR, HFR, NRBC#, NRBC%; PLT, MPV, PDW, PCT, P-LCR, P-LCC

14 research parameters: HFC#, HFC%, IMG#, IMG%, WBC-R, WBC-D, WBC-B, WBC-N,

RBC-O, PLT-O, PLT-I, PDW-SD, InR#, InR‰

2 histograms for RBC and PLT

3 scattergrams (3D) for DIFF, NRBC and RET

6 scattergrams (2D) for DIFF, BASO, NRBC, RET, RET-EXT, PLT-O

Parameters	Linearity	Precision	Carryover
WBC	0-500x 10⁹/L	<= 2.5% (>= 4x 10⁹/L)	<=1.0%
RBC	0-8x 10¹²/L	<= 1.5% (>= 3.5x 10¹²/L)	<=1.0%
HGB	0-250g/L	<= 1.0% (110x180g/L)	<=1.0%
HCT	0-75%	<= 1.5% (30%-50%)	<=1.0%
PLT	0-5000x 10⁹/L	<= 4.0% (>= 100x 10⁹/L)	<=1.0%
RET#	0-0.8x 10¹²/L	<= 15% (RBC >= 3x 10¹²/L; 1% <= RET % <=4%)	/

CAL 6000

The bidirectional loading track, with patent technology, on the first hematology analyzer enables fast sample distribution, improving efficiency and productivity.

Mindray CAL 6000 defines a new generation of cellular analysis line. By combining two units of BC-6000 or BC-6200 auto hematology analyzers and one unit of SC-120, CAL 6000 offers a throughput of up to 220 tests per hour and 120 slides per hour.

Features

The CAL 6000 is equipped with three loading platforms and three unloading platforms with large capacities.

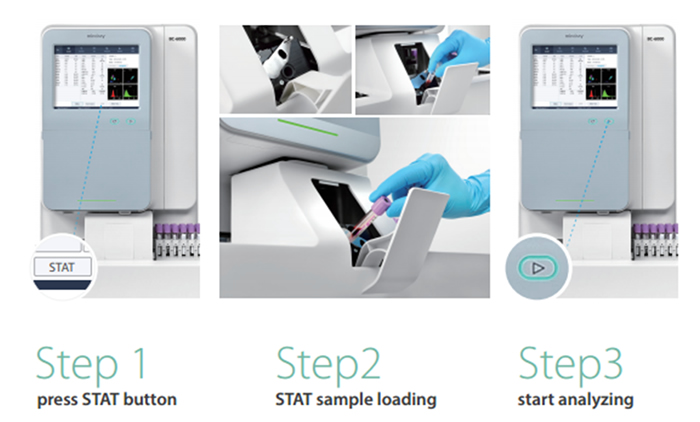

STAT sample could load ahead that reduce the TAT of emergency. By utilizing the patent adapter, many types of tubes are allowed.

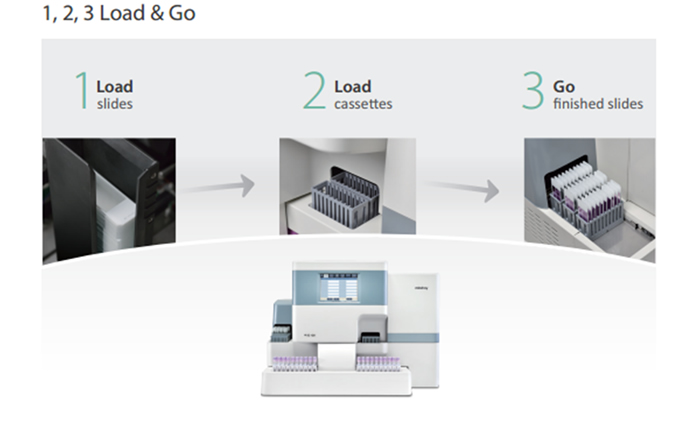

Simply by following 3 simple steps of “load and go”, users of the SC-120 can obtain finished slides which are ready for microscopic review.

CAL 8000 - New Generation Cellular Analysis

te the samples with “Repeat”, “Rerun” and “Reflex” criteria which are pre-defined by users.

Features

The unloading area can hold up to 200 s

The CAL 8000 can automatically distribuample tubes at a time. From here the users could select the sample tubes which need further analysis.Mindray provides original slides to ensure quality of blood smears and reliable performance of SC-120.

Mindray provides original stains as well as buffer fluid to ensure high quality of staining.

All reagents as well as the pneumatic unit could be set in the trolley below respective BC-6800 or SC-120. In this manner, the reagents and pneumatic unit could be well organized permitting easy reagent replacement.

The loading area can hold up to 200 sample tubes at a time. The STAT position provides and option for a faster blood count. The whole CAL 8000 can be started by just pressing one button.

BC 5150

Based on Mindray’s continuous innovation in hematology field, BC-5150 is especially tailored to assist diagnostic labs who need full CBC + 5-part results, with relatively low daily sample volume, restricted lab space and tight budget. As the lightest and most compact 5-part hematology analyzer so far from Mindray, BC-5150 is a highly user-friendly and innovative analyzer that offers cost efficient CBC and 5-part white cell differential results. It is targeted to fulfill and exceed the demands of our global customers by providing more accurate, more efficient and more innovative solutions for labs.

The BC-5150 is a compact, fully automated 5-part differential hematology analyzer designed for small to medium-sized laboratories. It provides comprehensive hematological analysis, including a 5-part white blood cell differential count, using innovative laser scattering technology and flow cytometry.

The BC-5150 offers a throughput of up to 60 samples per hour, making it suitable for laboratories with moderate testing volumes.

BC 700 Series

The BC-700 series integrates an automatic ESR module in a hematology analyzer. It can also generate both CBC & ESR results in one test within 1.5 min. In addition, it saves the costs that would otherwise be incurred for the purchase, maintenance, consumables, and storage space of a separate ESR analyzer. Compared with the traditional Westergren method, this method performs better in quality traceability, repeatability, speed, safety, and level of automation.

The BC-700 Series is a range of high-performance, fully automated hematology analyzers designed for medium to large-sized laboratories that require efficient, reliable, and advanced hematological analysis.

These analyzers offer high throughput capabilities of up to 120 samples per hour, allowing for rapid processing of routine and specialized hematology tests, including a 5-part differential white blood cell count and reticulocyte analysis.

Key features of the BC-700 Series include advanced laser scatter technology and flow cytometry for precise and accurate cell counting and differentiation, an intuitive touchscreen interface for ease of use, and comprehensive data management with connectivity to Laboratory Information Systems (LIS).
